Versatile by Design – The TheatreQuip Arch Bar

The TheatreQuip Arch Bar is a wired lighting bar system designed and engineered by the team at The P.A. People.

Designed for fixed applications, the TheatreQuip range of lighting bars are suitable for theatres, museums, galleries, houses of worship, schools and entertainment venues.

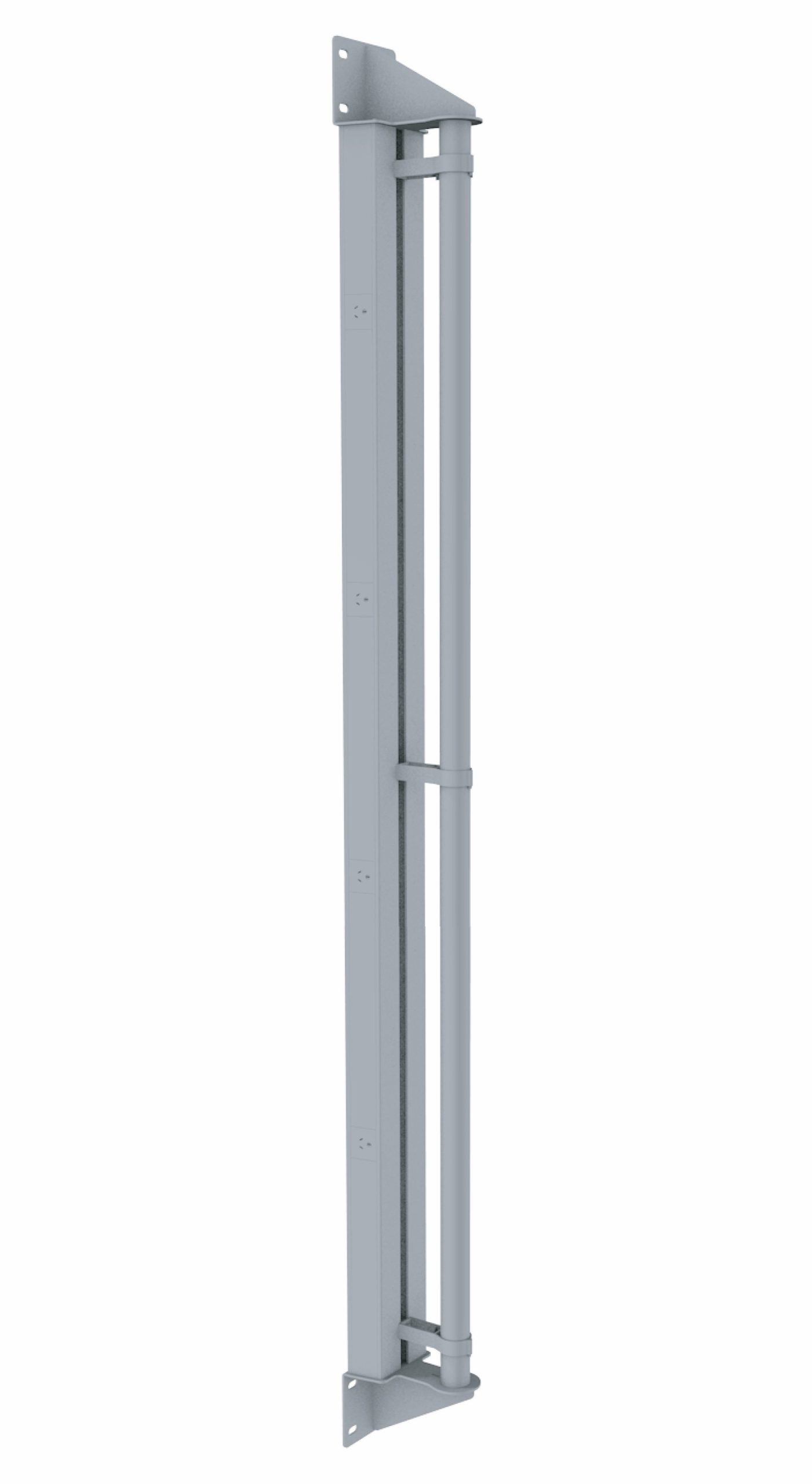

The Arch Bar is designed primarily for horizontal installations but also available configured for  vertical mounting to create a versatile perch bar for theatres.

Both models are available in continuous join-free lengths (up to 4.8m) and any configuration of power, data and circuits is possible. Separate extruded channels offer total segregation between LV and ELV services. Snap-in power outlets are used, connected with pluggable wiring connections, resulting in a double-insulated wiring compartment. The bars can be configured with a single or dual circuit with looped outlets, or the more traditional single outlet per circuit. Most forms of data are supported including Cat6 ethernet, 3pin and 5 pin DMX, fibre, SDI video, and audio.

TheatreQuip lighting Pro Bar and Arch Bar are part of the range of the staging products developed by the company’s Venue Engineering division.  The range which includes motorised hoists and lighting bars, drapes and track, motorised stage platforms, tensile net systems and counterweight systems.
